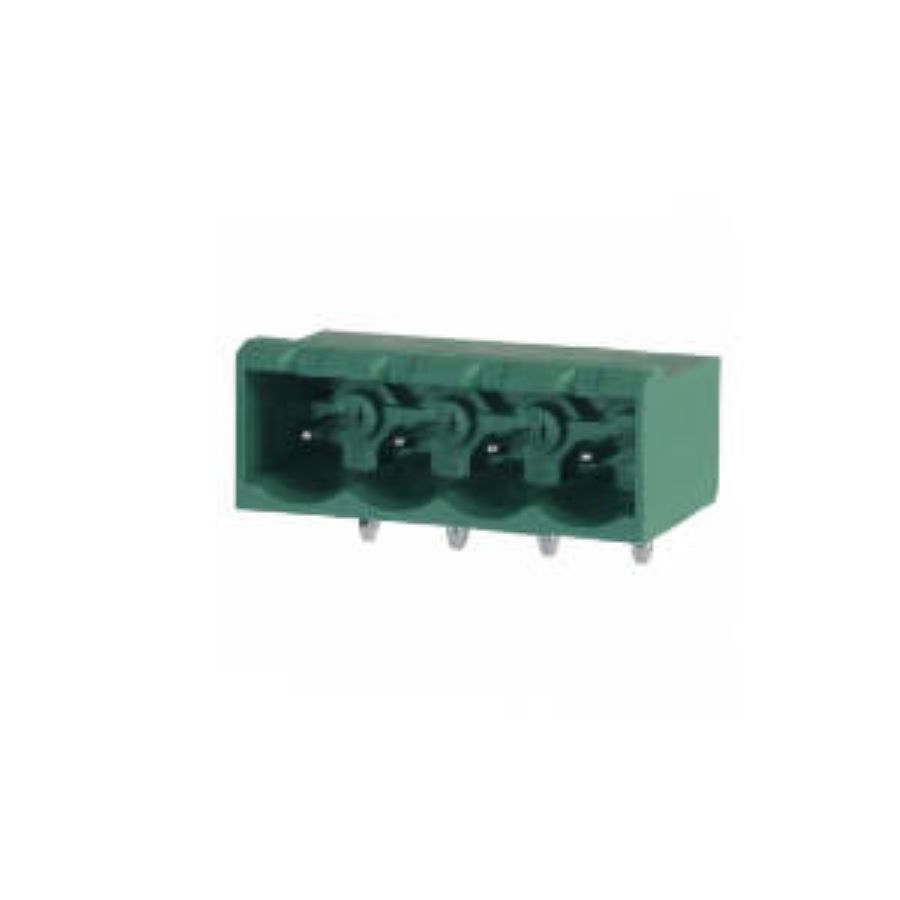

1757491
Manufacturer:
Phoenix Contact
Mfr.Part #:
1757491
Datasheet:
Description:
Terminal Blocks Through Hole 4 5 mm 15 A 300 V
| Parameter | Value |
|---|---|
| Length | 22 mm |
| Width | 22 mm |
| Termination | Solder |
| Max Operating Temperature | 100 °C |
| Min Operating Temperature | -40 °C |
| Height | 8.75 mm |
| Packaging | Bulk |
| Voltage Rating | 300 V |
| Depth | 12 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Voltage | 300 V |
| REACH SVHC | No SVHC |
| Weight | 2.113003 g |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Tin |
| Pitch | 5 mm |
| Current | 15 A |
| Current Rating | 15 A |
| Max Current Rating | 12 A |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA, UL |
| Orientation | Right Angle |
| Color | Green |
| Gender | Male |
| Number of Contacts | 4 |
| Number of Poles | 4 |
| Connector Type | Plug |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Housing Material | Polybutylene |
| Number of Positions Per Level | 4 |
| Number of Levels | 1 |
| Housing Color | Green |
| Connection Method | Plug |
| Current Rating (IEC) | 12 A |
| Voltage Rating (IEC) | 250 V |
Stock: 243
Distributors
pcbx
pcbxUnit Price$1.06980
Ext.Price$1.06980
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.06980 | $1.06980 |
| 10 | $0.76460 | $7.64600 |
| 25 | $0.62018 | $15.50450 |
